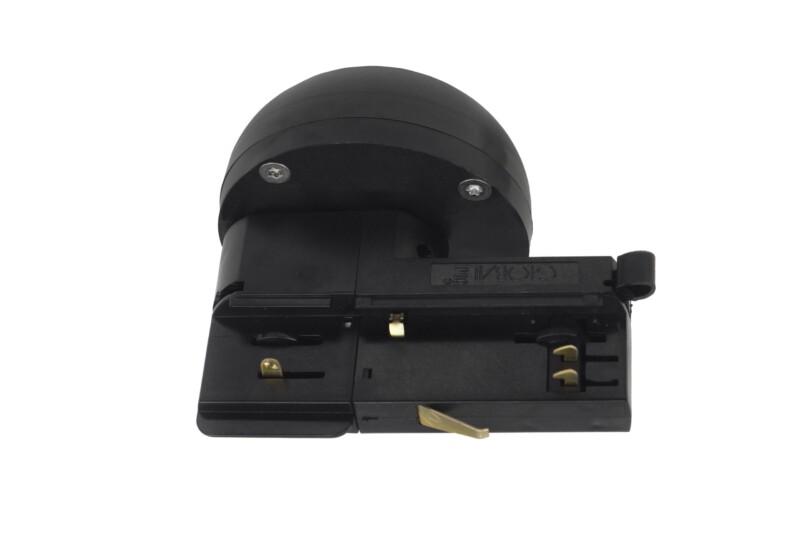

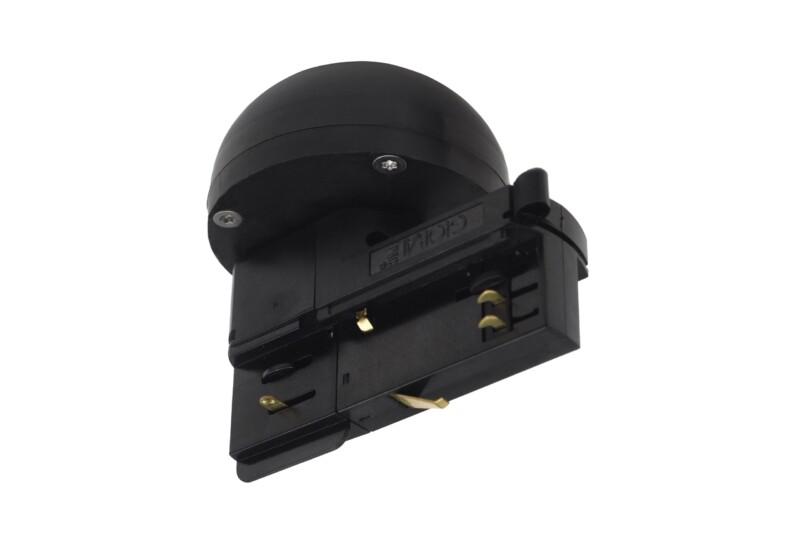

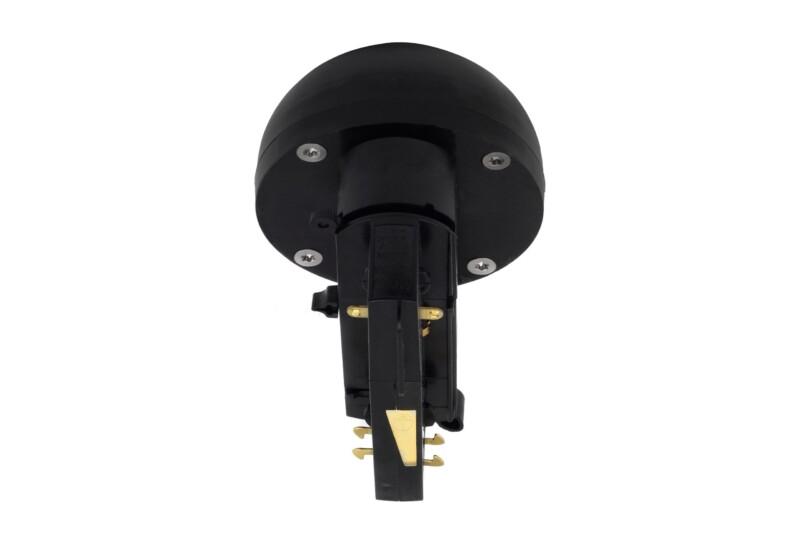

CBU-A2D-20-TRACK
The controller plugs directly into the 3-phase bus + DALI line (Global XTSC standard). When plugged into the bus, the controller controls up to 10 luminaires in DALI Broadcast mode. It is worth noting that this product also supports the DALI DT8 standard, which makes it possible to control Tunable White and RGB luminaires.
The controller can only work with DALI or DALI2 luminaires, but Casambi switches and sensors as well as dedicated EnOcean switches can be used in the lighting system. This approach greatly simplifies the lighting project.
In the Casambi application, the controller is visible as a single control point so paired Casambi sensors affect all luminaires connected to it. If you want to control luminaires independently use CBU-1016-40-TRACK.
- How many control points will it support? up to 10
- Practical range [m]: 30, 50
- How much power does it control? [W]: Calculate
- Supply voltage [V]: 230
- Current [mA]: 2
- Maximum DALI line current [mA]: 20
- Operating frequency [Mhz]: 2400
- Maximum RF transmitter power [dBm]:+8
- Operating temperatures [oC]: -20 to +65
- Maximum humidity [%]: 80
- IP protection class [xy]: 20
- IK protection class [xy]: Not tested
- Overall dimensions L x W x H [mm]: 104 x 80 x 108
- Extra Dimensions [mm]: Base diameter 80mm
- Housing material: Polyamide PA
- Weight [g]: 190
- Connection: Busbar 230V
- Color: Black
