Casambi Ready products

Casambi RGBCCT LED Controller

Casambi RGBCCT LED Controller that enables to control ON/OFF, light intensity, color temperature, RGB color of connected LED lights.

Shenzhen Sunricher Technology Co.Ltd.

VDWCM

Intuitively control whatever you want in the room with VDWCM. The rotary dimmer for Casambi, enables simple light regulation for the user. Sold complete with centre plates and knob adapted to Exxact, Elko and Gira. Available in white and black.

Vadsbo

Casambi SPI Controller

Casambi to SPI controller by LED BY DESIGN is a digital LED strip controller. You can easily control SPI LED strips with RGB and RGBW LEDS from Casambi App. Support most common IC's.

LEDbyDESIGN

Casambi MultiDim-PWM & 0-10V Controller

Casambi Multi-Dim is a multi protocol dimmer device supporting 0-10V and PWM control, Featuring 2 PWM Channels and 2 0-10V channel

LEDbyDESIGN

BK-CAPS01

Casambi Wireless dimmer module, 12-24VDC, suitable for use with auxiliary 12V&1-10V or support 10V PWM dimming driver, dimming range 1-100%, supports change profile to switch the dimming curve, support Casambi Wireless Long Range(LR) mode.

BOKE Drivers Co.

HNB356DL

HNB356DL is a Casambi bluetooth mesh app controller, standard Zhaga book18 structure, IP65. 12-24V DC input.DALI singnal output(Max control 4 devices).

Hynall intelligent control co. ltd.

LED CV PWM Dimmer Linear

Over-the-Air programmable constant voltage 1 channel LED dimmer. Controllable via Casambi.

buschfeld

D300IBC

D300IBC is a Casambi Phase-cut Dimmer. Max. load wattage 300W for Incandescent lamps and 270W for LED lamps(when the PF of the LED lighting is 0.9 or higher)

Xiamen AcTEC Electronics Co.

IN.finite CASAMBI 4Ch CV

4 Channel control unit for constant voltage systems with flicker free PWM dimming and a maximum output power of 4 A (2 Ch mode) and 2.5 A (4 Ch mode) per channel developed in Germany. Suitable for independent channel control, tunable white, dim to warm and RGB(W) solutions. Input for sensors or switches. Input voltage 12 V – 48 V.

LED Linear GmbH

Lithoss Casambi Dimmer

The Lithoss Casambi Dimmer is a luxurious, innovative and wireless rotary dimmer for Casambi. It provides precise control over the brightness of your luminaires and can also be used to instantly switch your luminaires with its integrated push function.

Lithoss

HNB356

12-24V DC input, 0-10V PWM signal, bluetooth mesh converter by Casambi bluetooth mesh app control, more than 50m bluetooth transmission range, low energy mesh

Hynall intelligent control co. ltd.

Fixture Mounted Wilress to 0-10V Dimming Node

The fixture-Integrated converter combines 0-10V dimming and Casambi radio technology into a small package that fits into various luminaires.

Shenzhen Sunricher Technology Co.Ltd.

LINE-5CV-CASAMBI

Linear case 5 channels led controller equipped with 2 configurable push button inputs.

Dalcnet

LED Dimmer

LED Dimmer

Arditi

PWM5-Pro

PWM5-Pro is a High Power (10Amp), Casambi controllable, 5 channels PWM dimmer for constant voltage LED Load like strips and constant voltage LED modules. It is connected between a 12-24 VDC power supply and the constant voltage LED load.

LEDbyDESIGN

PWM2-Pro

2 Channels PWM Dimmer with Casambi control for LED strip and Constant Voltage LED load. Small and compact case, easy and fast installation.12-24VDC input 5A map.

LEDbyDESIGN

PWM2-Push

2 Channels dimmer for LED strip and Constant Voltage LED load 12/24V input/output. PWM2-Push can be controlled by Casambi app and also by Push Button.

LEDbyDESIGN

PWM2-Pico

2 Channels dimmer for LED strip and Constant Voltage LED load 12/24V input/output. PWM2-Pico can be controlled by Casambi app and also by gesture control.

LEDbyDESIGN

Universal Dimmer 300

Smart leading edge and trailing edge phase dimmer with automatic load detection.

AIMOTION

TRED-L-CSB-2A

Trailing Edge Phase Dimming Controller

Eulum

TRAN-L-CSB-D8

Casambi to DALI Protocol Translator

Eulum

TRAN-L-CSB-D4

Casambi to DALI protocol translator

Eulum

TRAN-L-CSB-1

1-10V Translator

Eulum

NDRV-L-CSB-1

12-52VDC Constant Voltage PWM Dimmer

Eulum

LDRV-L-CSB-2

20-42VDC, 100-700mA Constant Current Programmable Driver

Eulum

NDRV-L-CSB-2

12-52VDC Constant Voltage PWM Dimmer, 2 Channel

Eulum

NDRV-L-CSB-4

12-52VDC Constant Voltage PWM Dimmer

Eulum

PWM5 HP

PWM5 HP is a High Power (10Amp), Casambi controllable, 5 channels PWM dimmer for constant voltage LED strips and constant voltage LED modules. It is connected between a 12-24 VDC power supply and the constant voltage LED load.

LEDbyDESIGN

808885 PWM4 in Waterproof

Casambi PWM4 in Waterproof IP65 housing with connection cables for outdoor usage.

Arditi

PWM2-GC

2 Channels PWM Dimmer with both Casambi control and Gesture control for LED strip and Constant Voltage LED load.

LEDbyDESIGN

Master Eco Casambi FA001-050

The MASTER ECO CASAMBI control unit allows to control up to 4 constant voltage loads through the Casambi ecosystem. It is equipped with 4 constant voltage outputs and can connect up to 4 buttons. The profiles available are: -4 independent channels -RGB -RGBW -dynamic white -dynamic white for double emission luminaires -only push buttons ...and other configurations continuously updated

Stealth Light

LIGA.AIR.UD-700-C

Adapter with 4 button inputs for the DIN universal dimmer UD-700-X2-DALI-C. 2 Universal dimming channels with 700W each, for flicker free dimming of diferent types of lamps ( also LED Lamps ) Automatic detection of the load and oscilloscope function. Size: 30 x 45 x 15mm ( adapter )

LIGAAIR

CASA PWM5

The CASA PWM5 unit enables direct access to the preconfigured functions of the CASAMBI® lighting control.These are on the one hand dimming, switching lights on and off and on the other hand setting colors. By integrating the fifth channel, RGBCCT is now possible. 5 channels, output voltage 12-24V DC. Total output power 10A. Connected lights remain flicker-free down to low dimming levels.

RP-Technik

CASA Trailing Edge Dimmer

The CASA trailing edge dimmer is a trailing edge dimmer. Its use enables stepless dimming of trailing-edge lamps. Output power 150W LED / 200W ohmic (e.g. light bulbs). It is controlled wirelessly with the CASAMBI® app.

RP-Technik

PWM2

2 Channels, Casambi controller for LED strip and Constant Voltage LED load.

LEDbyDESIGN

Constant Current Supply 1500mA

Dimmable constant current extension for the PowerController V2.

LUMITRONIX

MiniController Casambi

Compact tunable white control unit for LED modules with smart operability.

LUMITRONIX

LED / Retrofit Dimmer CRD INS

Digital leading edge and trailing edge phase dimmer with automatic load detection for a single dimmed phase for a max load of 380VA.

MTC maintronic GmbH

PWM4 10A 12-48VDC

DEM.214 is a 4 channel Bluetooth dimmer. It has 4 independent PWM outputs at 1.95kHz with total output current 10A and output voltage 12-48VDC

Electron SA

PWM5

PWM-5 is a Casambi controllable, 5 channels PWM dimmer for constant voltage LED strips and constant voltage LED modules. It is connected between a 12-24 VDC power supply and the constant voltage LED load.

LEDbyDESIGN

A5 Step Down

Converter CV to CC and Dimmer 2Ch - Input voltage 48Vdc and 24Vdc - Output Min 2,5V Max 43,2V from 250mA to 2100mA.

BERTRONIC SRL

SLD-DIM-CB

GRE Alpha’s Casambi enabled dimming module is a 240 Watt single channel output Constant Voltage LED dimming module that allows for seamless integration with Casambi-enabled luminaires, sensors, wall-mounted and wireless switches.

GRE Alpha

808385 PWM4 in Waterproof

Casambi PWM4 in Waterproof IP65 with connection cables for outdoor using.

Arditi

Electron DMR.736

DIN Rail Casambi ready trailing edge dimmer.

Electron SA

808698 CBU-TED in Waterproof

Casambi CBU-TED in Waterproof IP65 with connection cables for outdoor using.

Arditi

Arditi dimmers

A wide range of security class II Casambi Ready products.

Arditi

Optotronic OT BLE

Four channel constant voltage (12-24V) dimmer.

Osram by Inventronics

BIG4

BIG4 consists of 16 controllers that allow wireless lighting management via Bluetooth technology.

ES-System

Power dimmer 2ch

Two-channel constant voltage (12-24V) dimmer with push button support.

LEDsGO

Power dimmer 4ch

Four channel constant voltage (12-24V) dimmer with push button support.

LEDsGO

DiMX

DiMX - Casambi to DMX512 Controller

LEDbyDESIGN

XLED4 CV Casambi LED Converter

LED ballast for comfortable and flexible control of LEDs with constant voltage. Additionally, DALI integrated, depending on the operation mode 1 to 4 channels / Tuneable white / RGB+W.

MTC maintronic GmbH

PowerController V2 Control Unit Casambi

Compact control unit for numerous lighting applications

LUMITRONIX

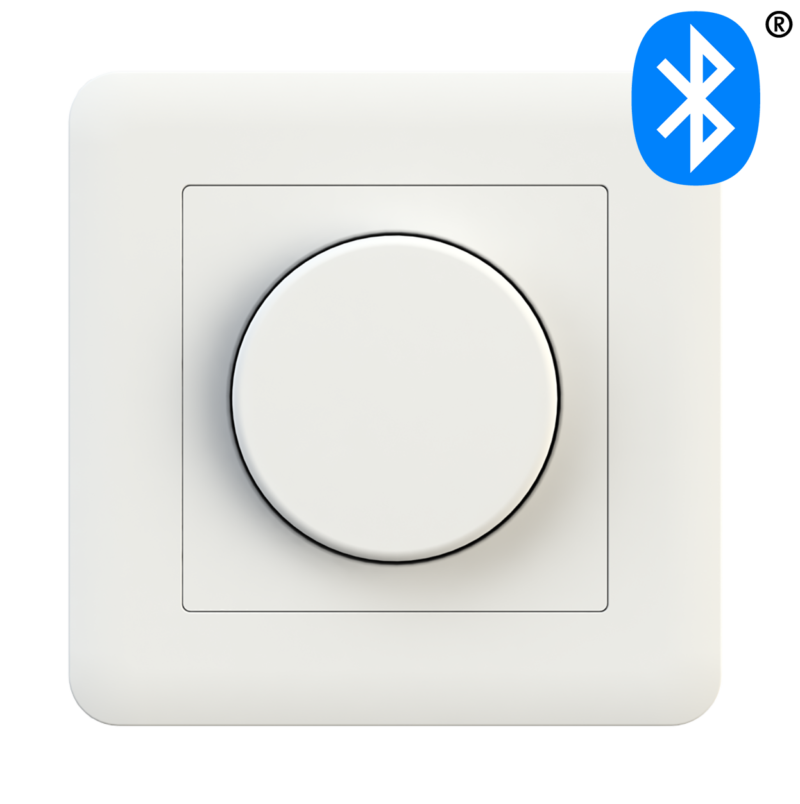

LD220WCM

0-200VA wireless dimmer with momentary switch push button with astro time schedule features. Extremely small and suitable for wallbox installation.

Vadsbo

Electron DMR.733

Electron SA

DLX1224-4CV-CASAMBI

Four channels led dimmer equipped with 4 push buttons.

Dalcnet

DLX1224-4CC500-CASAMBI

Led Dimmer Casambi Driver 4CH Constant Current Input 12-24Vdc, Output 4x500mA, Command app Casambi + 4 N.O. Push Buttons

Dalcnet

DLX1224-4CC350-CASAMBI

Led Dimmer Casambi Driver 4CH Constant Current Input 12-24Vdc, Output 4x350mA, Command APP CASAMBI + 4 N.O. Push Buttons.

Dalcnet

DLC1224-1CV-CASAMBI

Single-channel constant voltage (12-24V) dimmer with push button input, that incorporates Casambi Bluetooth technology.

Dalcnet

A2 Dimmer 9A 4Ch

One, two, three or four channel 9A Costant Voltage 12V - 24V - 36V - 48V

BERTRONIC SRL

A1 Dimmer 9A 2Ch

One or two-channel 9A constant Voltage 12V - 24V - 36V - 48V

BERTRONIC SRL

D80x18-1224-2CV-CBU

Linear dimmer 2 channel. Slim board without housing for use in Smart installations like inside led profiles.

Dalcnet

D118x18-1224-4CV-CBU

Linear dimmer 4 channel. Slim board without housing for use in Smart installations like inside led profiles.

Dalcnet

A4 Converter 24V

Convert 24Vdc to constant current 1 or 2 channels with optional dimming push button.

BERTRONIC SRL

A3 Converter 12V

Convert 12Vdc to constant current 1 or 2 channels with optional dimming push button.

BERTRONIC SRL

CHROMOFLEX Casambi

The CHROMOFLEX Casambi communicates via Bluetooth Low Energy, can be networked with all CASAMBI compatible devices and has four freely assignable push-button inputs.

Barthelme LED Solutions

CASAMBI Module, IP20

Independent Casambi module in a plastic housing.

Drees GmbH

CASAMBI Module, IP20

Installation module Casambi with heat-shrink tubing for constant voltage 12 – 24 Vdc.

Drees GmbH

ADC1248-4CH-CASAMBI

Four-channel dimmer converter. This product is equipped with 4 analogue inputs for connecting N.O. push buttons.

Dalcnet

Plug & Play – Dimmer

Smart dimmer for luminaires with plug.

AIMOTION
