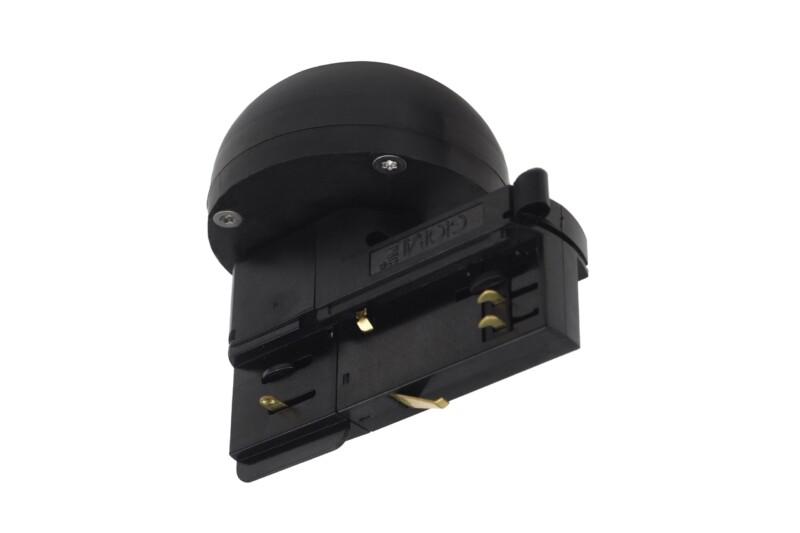

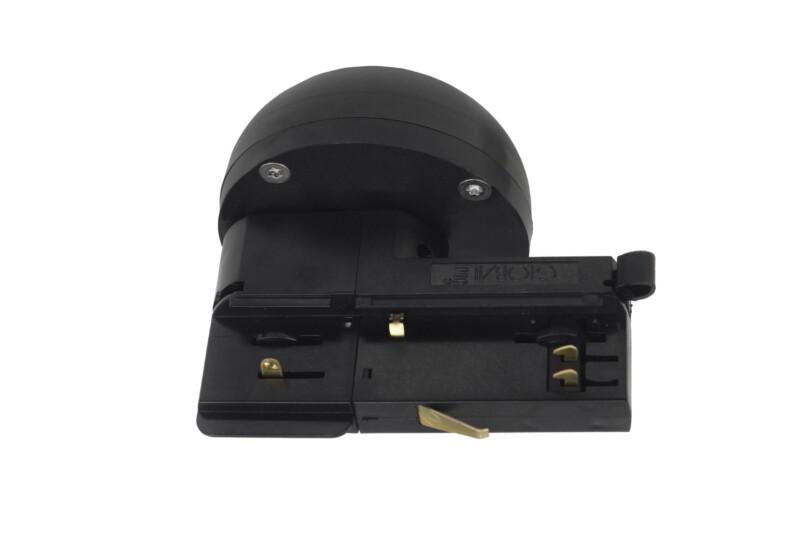

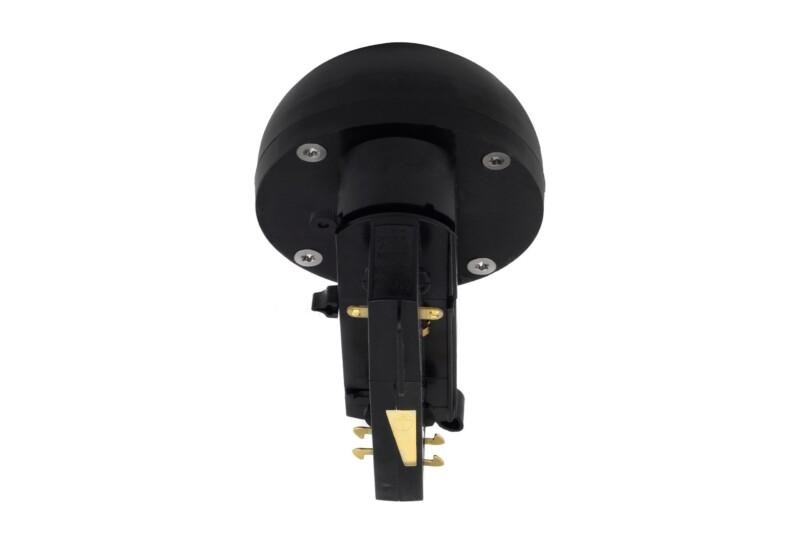

CBU-DA-TRACK-230
The controller plugs directly into the 3-phase bus + DALI line (Global XTSC standard). After plugging into the bus and performing the addressing procedure, up to 50 LED luminaires organized into up to 8 control groups can be controlled. It is worth noting that this product supports profiles such as DALI D4i up to 8 addresses; DALI Broadcast, DALI DT6, DALI DT8, DALI Gateway.
The controller has a built-in 100mA power supply and can work with DALI2 luminaires and sensor. In addition, Casambi switches and sensors and dedicated EnOcean switches can be used in the lighting system. Casambi’s tehnology makes it possible to create hybrid networks consisting of both Casambi Ready and DALI or DALI2 devices.
Remember that in the system, the controller is visible as a single control point so paired Casambi sensors affect all luminaires connected to it regardless of group addressing. If you want to control groups of luminaires independently use CBU-1032-70-TRACK.
- How many control points will it support? up to 50
- Practical range [m]: 30, 50
- Supply voltage [V]: 230
- Current [mA]: 2
- Maximum DALI line current [mA]: 250
- Guaranteed DALI line current [mA]:100
- Operating frequency [Mhz]:2400
- Maximum RF transmitter power [dBm]: +8
- Operating temperatures [oC]:-20 to +65
- Maximum humidity [%]: 80
- IP protection class [xy]: 20
- IK protection class [xy]: Not tested
- Overall dimensions L x W x H [mm]: 104 x 80 x 108
- Extra Dimensions [mm]: Base diameter 80mm
- Housing material: Polyamide PA
- Weight [g]:190
- Connection: Busbar 230V
- Color: Black
