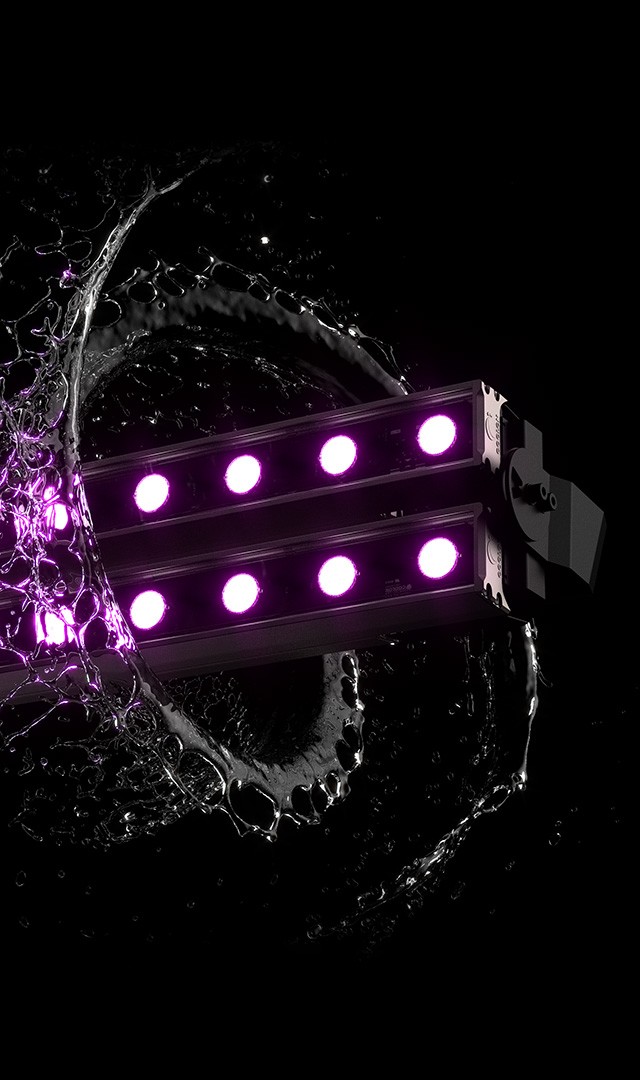

Aria X RGBW AC Floodlight

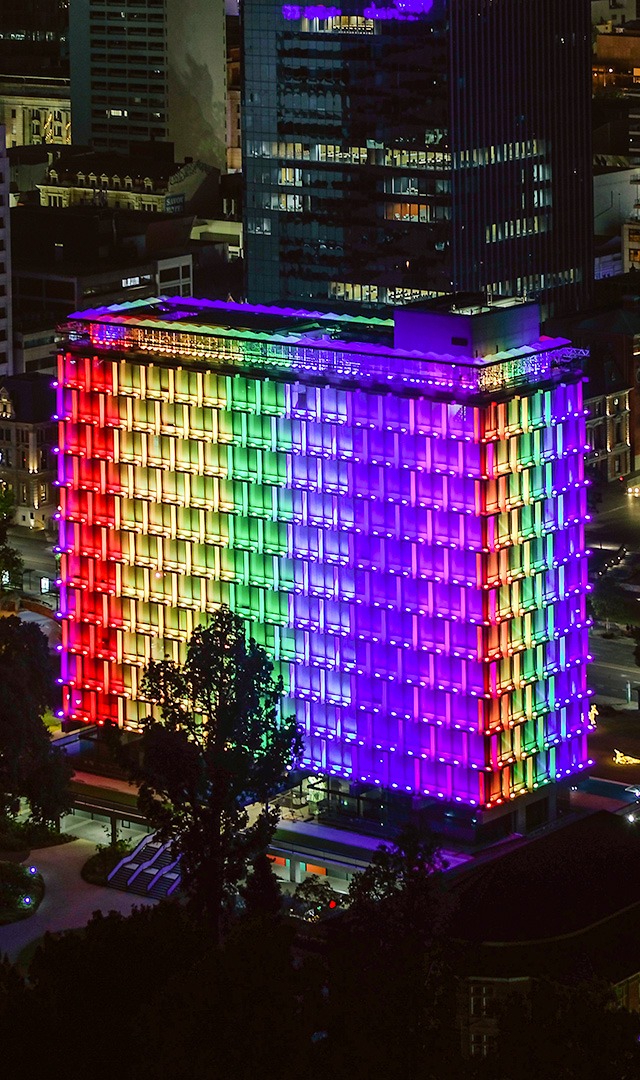

Aria X RGBW is a high-power linear AC RGBW floodlight luminaire, specifically designed for creative wall washing and grazing applications. Aria X RGBW is an ultra-high-power member of the Aria family, providing heavy-hitting lumen output and maximum colour oomph for a show-stopping effect in each application.

Powerful, robust and versatile, this colour changing luminaire features an integral power supply with DMX driver and is offered with a range of accessories.

Read More

TYPE OPTIONS

  • 70W (Single Luminaire)
  • 140W (Double Luminaire)
  • 210W (Triple Luminaire)

LED COLOUR OPTIONS

  • WW (RGB + Warm White)
  • CW (RGB + Cool White)



OPTICS OPTIONS

  • 11° Beam
  • 15° Beam
  • 30° Beam
  • 56° Beam
  • Oval 35° x 11° Beam
  • Oval 11° x 35° Beam
  • Oval 60° x 10° Beam
  • Oval 10° x 60° Beam
  • Oval 60° x 10° Beam 90° Rotated
  • Oval 10° x 60° Beam 90° Rotated

PROFILE COLOUR OPTIONS

  • Black Brushed Anodized
  • Natural Brushed Anodized

DIMMING CONTROL OPTIONS

  • Self-Addressable DMX
  • Self-Addressable DMX CE Compliant
  • Casambi control through CasDMX

Features

  • Outstanding colour collimation with precise beams
  • Onboard DMX and mains driver makes installation a breeze
  • Self-Addressing and Matrix White smart functionality
  • Polyurethane Encapsulation

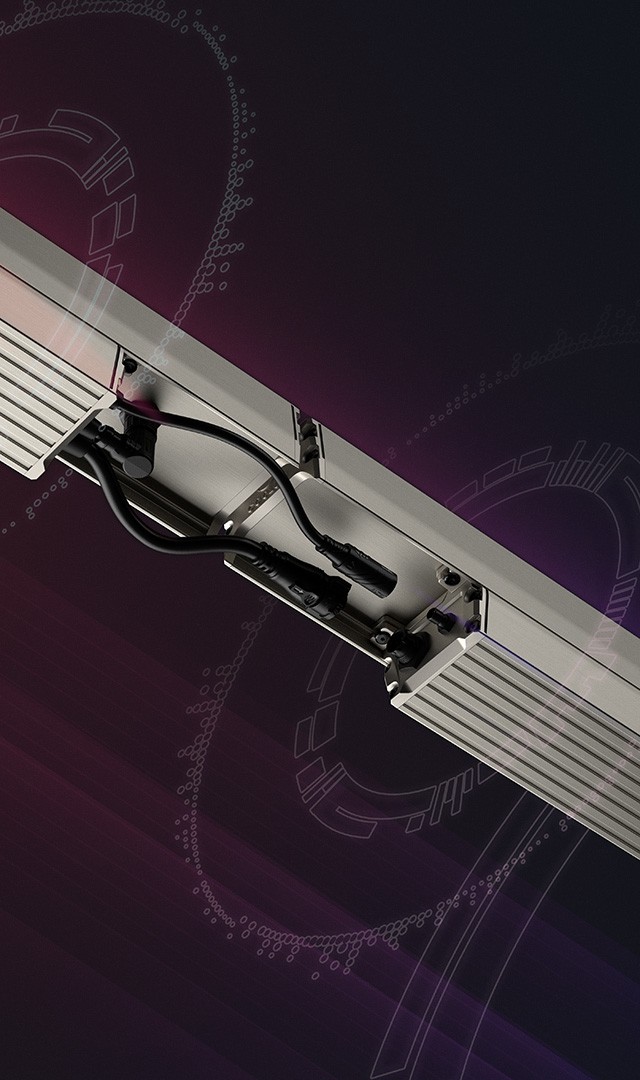

  • Versatile Mounting and Aiming
  • 5 Year Warranty
  • Designed and made in Australia

Technical facts

  • Nominal Power: 68/136/204W
  • Input Voltage: 120 – 250VAC
  • Input Frequency Range: 47 – 63Hz
  • Luminaire Body: Aluminium Alloy Body
  • Lens Cover: Clear Polyurethane
  • Endcap: Powder coated Die-cast Aluminium
  • Dimming / Control: Self Addressable DMX (Full Frames)
  • IP Rating: IP66: (Standard)
  • IK Rating: IK08 (Standard)
  • Not including Wiring / Connector
