DALI Interface
Configurable and versatile with the CASAMBI app. Sends DALI broadcast (1 Ch) or to DALI address 0..3 (multi-channel). Configuration of the other interface types (DALI: 1..4 Ch, TW, RGB, RGB+W, RGB+TW) possible before coupling to the network: Change profile. For up to 5 devices. Additional button input, freely configurable in the app.
- supply input: 220..240V; 50Hz
- radio signal: 2.4..2.483 GHz; 4dBm
- signal output: DALI / 10mA
- Range outdoors: up to 150 m
- Ambient temperature (ta): -20..+70 °C
- Max. design temperature (tc): 80℃
- Dimensions: 80.7x30x15.3mm
Similar products
Control gear
Nano IB
A compact interface board designed for advanced lighting control, smart city, smart home, and renewable energy applications. It offers a range of pre-built functions and an SDK for customisation, supporting a variety of wireless and wired protocols. Currently available with RS485 and DALI, future support for various wired protocols & interfaces such as DMX, KNX, IR,RS232, and CAN Bus.
s4i
Control gear
Integral R1
A versatile wireless relay engineered for effortless integration into Casambi networks. Designed for high-performance switching of up to 10A output with 250A inrush.
Versaan
Control gear
CBU-A2D-20-TRACK
The A2D controller performs two functions at once: It creates a wireless CASAMBI network node and a wired DALI infrastructure serving up to 10 luminaires. The device has a built-in DALI power supply giving 20mA of control current to your luminaires.
LIGHTWORKS
Control gear

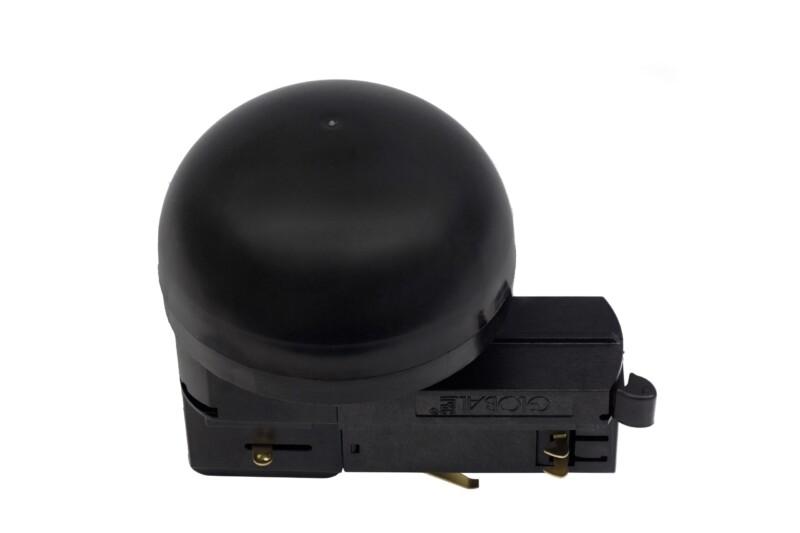

CBU-DA-TRACK-230
