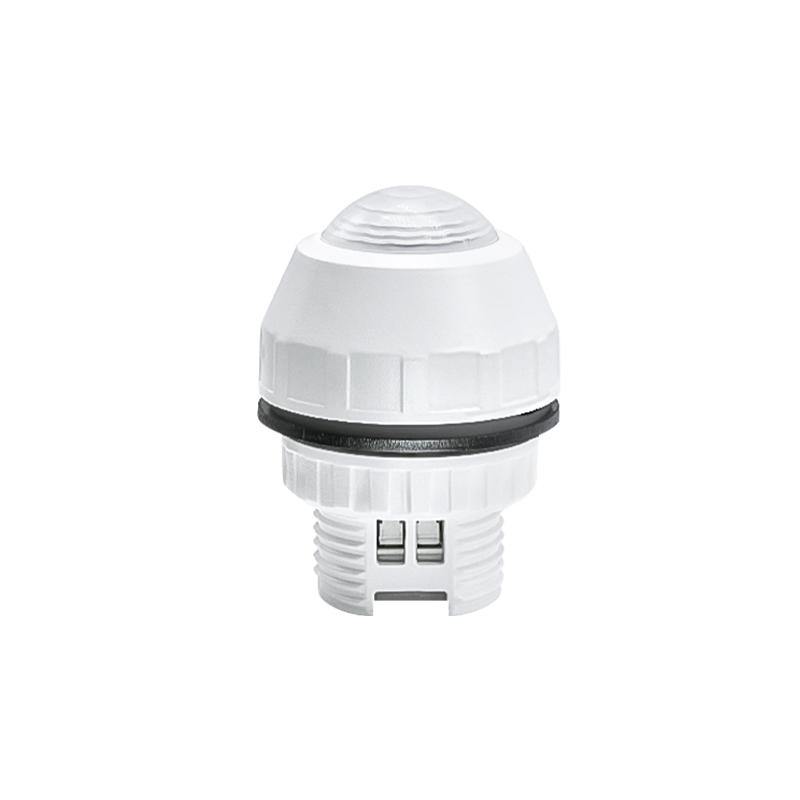

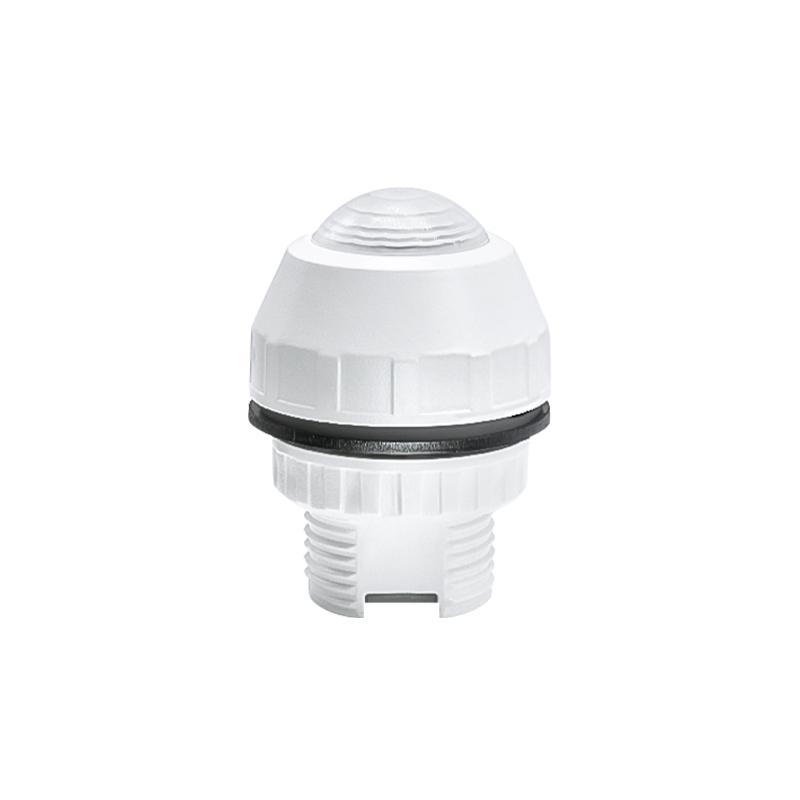

IRIS PHOTODIODE SENSOR
The CES/I-B-CS is a Casambi-based indoor sensor for wireless transmission of daylight levels to a lighting control system per the Bluetooth 5.0 protocol. The sensor is powered by 24VDC from an external driver or power supply and provides a measurement range of 0 – 100 fc (1076 lux). Typical applications include offices, warehouses, hospitals, and all spaces where daylighting is important. The CES/I-B-CS provides the functionality and quality that have made PLC Multipoint photosensors the “Gold Standard” for over 30 years. The sensor is UL listed and is FCC compliant.
- Communication Protocol – Bluetooth 5.0
- Measuring range – 0-100 fc
- Input Power – 12- 24VDC, 40mA Max
- Operating Temperature – -20C to +55C
- Photodiode – Blue Enhanced
- Transmission Distance – 100 feet line-of-sight*
- 5-year Warranty
