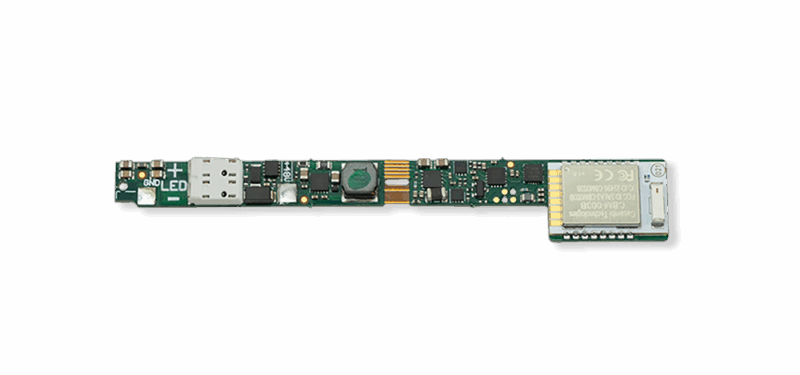

LED CC Driver Linear

This device is developed for any kind of constnt current LED applications and enables control via Casambi Bluetooth. It converts Constant Voltage to Constant Current, has 1-Channel and its output is programmable via Casambi in 1 mA steps. The benefit is a smooth Dimming without artefacts via constant current reduction in continous conductiuon mode at dimming levels >1%. below 1% of Iout the dimming methode switches to PWM @ 2kHz.

Pseudorandom Pulse Code Modulation at very low LED currents <1% instead of PWM

Bendable joint in the middle of the PCB

Typical applications: COB, CSP LEDs, Light Engines, standard socket constant current LEDs, deco fixtures

  • Input Voltage Typical: 12 to 48V DC
  • Input Voltage Condition: Vin > V_LED+5V
  • Input Voltage Maximum: 10 to 52 V DC
  • Output Voltage: 5V to Vin-5V
  • LED Current: 0 – 500 mA (+/- 2,5mA)
  • Power Dissipation: max. 2 W @ max load
  • Size max: L. 92.5 mm x W. 8 / 14.5 mm x 3.8 mm
