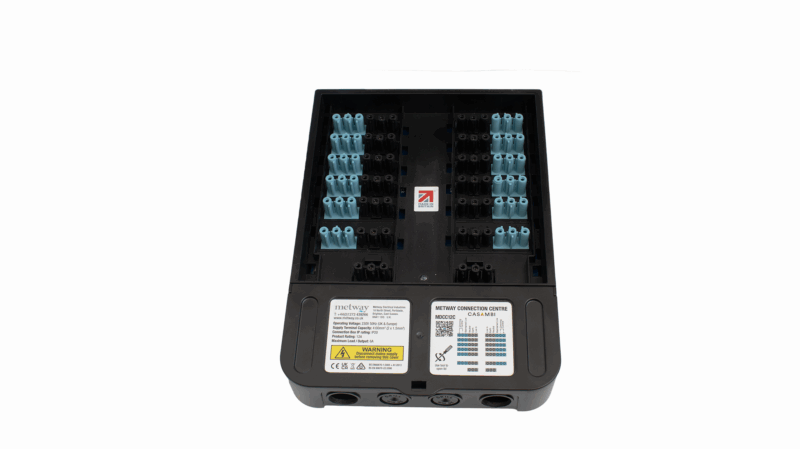

MDCC12C
MDCC12C seamlessly integrates Casambi DALI components within the mesh into the network communicating via an onboard Salvador1016. MDCC12C has a 12 DALI luminaire output configuration with two dedicated mains outputs for powered sensors or switches. Luminaire outputs have dual latching to provide an added safety feature.
Integrated into the MDCC12C is a 125mA PSU to allow the device to become a Casambi node capable of communicating through the wireless network addressing up to 12 luminaires. Additional power supplies can be disabled by removal of the jumper when DALI power is exceeded.
Manufactured from V0 flame retardant material in a low profile design the MDCC12C facilitates a straightforward single-fix installation with loop in termination of connections.
- Casambi enabled Salvador1016
- 12 luminaire outputs
- LED power indicator for mains supply
- Dual latching G type connectors
- 12A Max load
- 6A load per output
- 4mm² terminal capacity 2×1.5mm²
- 90% recycled material
- Flame retardant PC UL94 V0
- up to 150m LOS wireless range
