Plume 10 AC RGBW

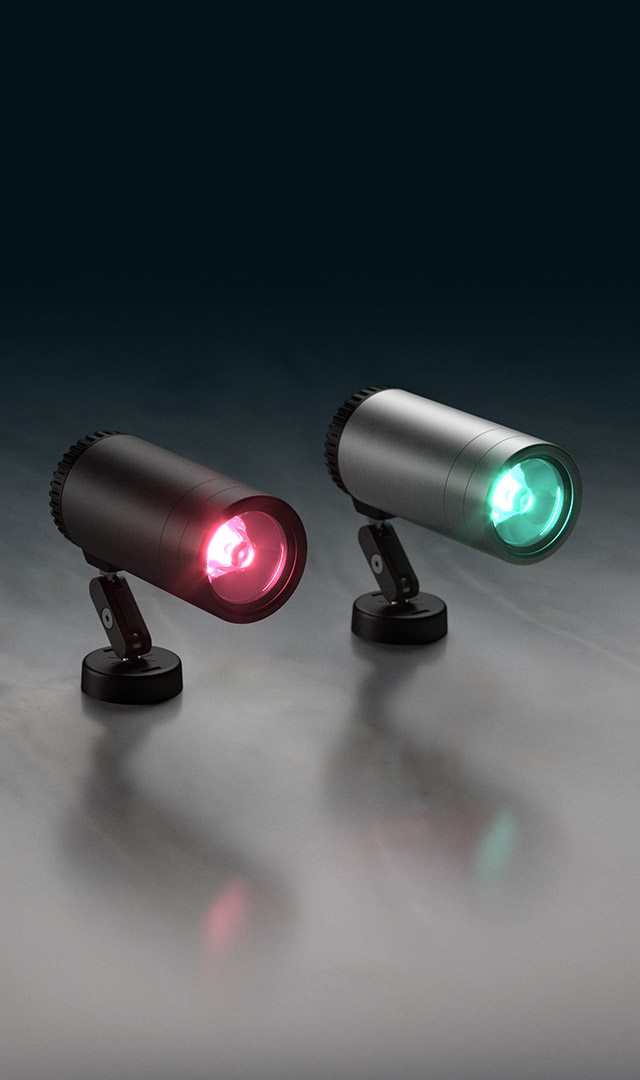

Exterior 10W compact RGB+W colour changing spotlight designed for accent and flood lighting applications.

Utilize the Plume to highlight architecture, graze/beautify facades, bridges, and magnitude of landscapes. Integrated power supply and control via on-board Casambi make controlling this spotlight wirelessly a total breeze.

Plume is IP66 and is further complimented by 6 optical variations, 3 external finishes, glare control accessories and two type of brackets. The RGBW quad chip delivers outstanding collimated coloured light in a compact form-factor.

Read More

OPTIC OPTIONS

  • 7° Beam (Far Throw Collimation)
  • 10° Beam
  • 15° Beam
  • 30° Beam
  • 56° Beam
  • Oval 35° x 11° Beam

BODY COLOUR OPTIONS

  • Black Brushed Anodized
  • Brass Brushed Anodized
  • Natural Brushed Anodized

INTERNAL LOUVRE OPTIONS

  • Standard Clear (No Louvre)
  • Honeycomb Louvre

MOUNTING OPTIONS

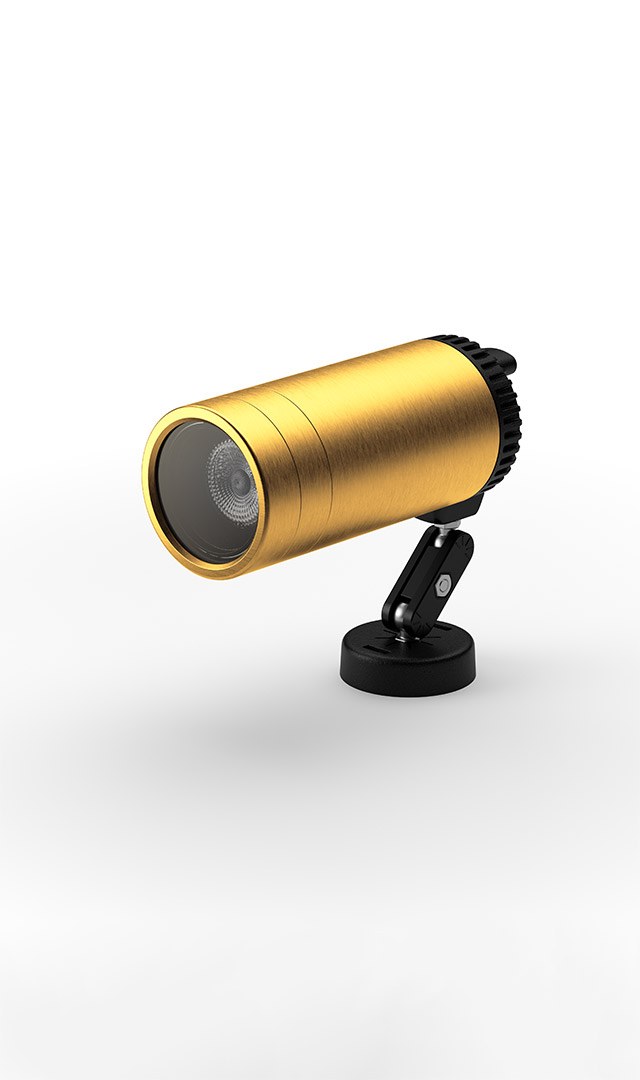

  • Ball Joint Mounting Bracket

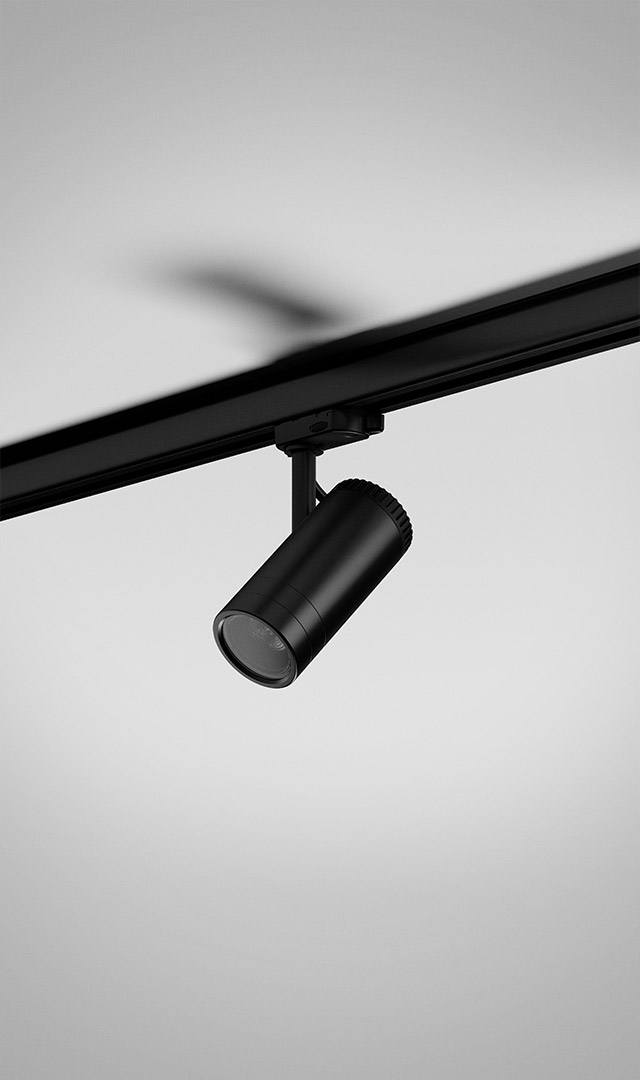

  • Track Mounting Bracket
  • No Mounting Included

FEATURES

  • Outstanding colour collimation with precise and narrow beams
  • 5 Year Warranty
  • Designed and made in Australia
  • Onboard Casambi and mains driver makes installation a breeze
  • Versatile Mounting and Aiming

Technical facts

  • Lumen Output: (White LED) 196 lm / 10D-SC
  • Nominal Power: 10W
  • Body: Aluminium Alloy Body
  • Lens Cover: Glass
  • Endcap: Polycarbonate
  • Input Voltage: 120 – 250VAC
  • Input Frequency Range: 47 – 63Hz
  • Dimming / Control: Casambi
  • External Heatsink Required: No
  • Ambient Operating Temperature: Ta -10°C to 50°C
  • Reported Lumen Maintenance TM21-11 (@ Ts = 90°C, If = 1500mA): L70 (6K) > 33,000 hours
  • IP Rating IP66: (Standard) – Not including Connectors
  • IK Rating IK07: (Standard) – Not including Wiring / Connector
  • Weight: 800g
