UNI-BEDIM-P-CAS-SW

The UNI-BEDIM-P-CAS is a high-quality flush-mounted wall dimmer with Casambi wireless control, specifically designed for trailing-edge (phase-cut) dimming.

This smart dimmer offers seamless integration into System 55 cover frames and operates on a two-wire connection (no neutral required), making installation simple and efficient.

Thanks to Casambi connectivity, the dimmer can be controlled wirelessly via the Casambi app or linked switches, enabling flexible and intuitive lighting control.

With a maximum load of 250 VA, it is suitable for a wide range of dimmable light sources.

Features

• Wireless control via the Casambi app
• Trailing-edge dimmer for optimal compatibility with LED and halogen lamps
• Easy installation with two-wire connection (no neutral required)
• Compatible with System 55 cover frames
• Maximum load: 250 VA

Technical facts

• Mains voltage: 230V ±10% / 50Hz
• Max. dimmer load: 3–250 W/VA – 1.1 A
• Power consumption: max. 1 W
• Radio transceiver: Casambi

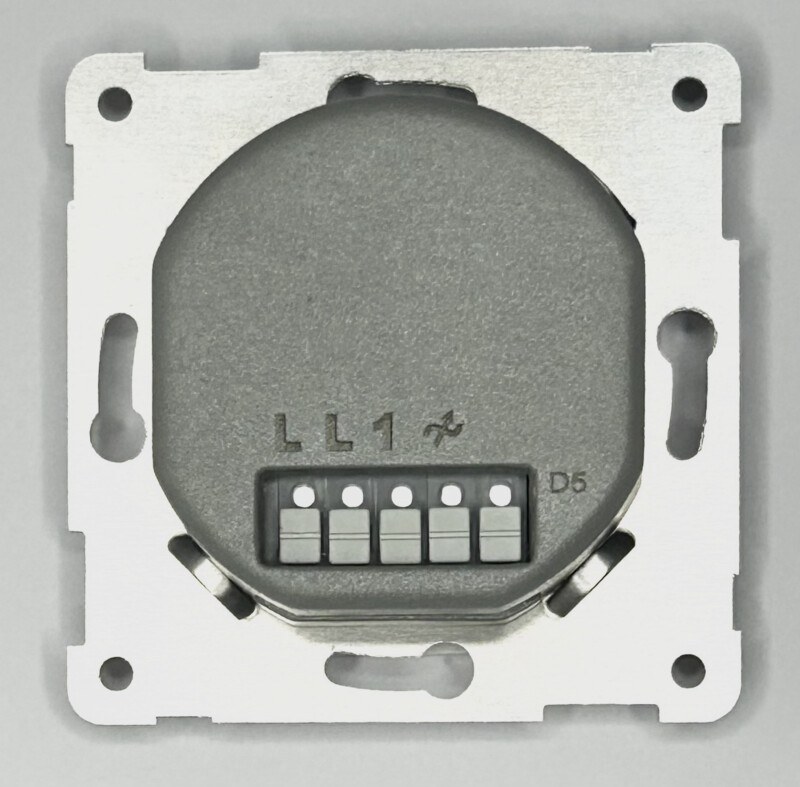

• Connections: plug-in terminal (5P)
• Housing dimensions BE: 70 × 70 × 23 mm (flush-mounted)
• Housing dimensions BM: 55 × 55 × 11 mm (touch) × 22 mm (knob)
• Weight (excl. packaging): ~70 g
